Solar Lifting Light Tower
Inquiry NowOverview
| Place of Origin | China |
| Certification | CE |
|---|---|
| Minimum Order Quantity | 1 |
| Packaging Details | Wooden box packaging |
Description

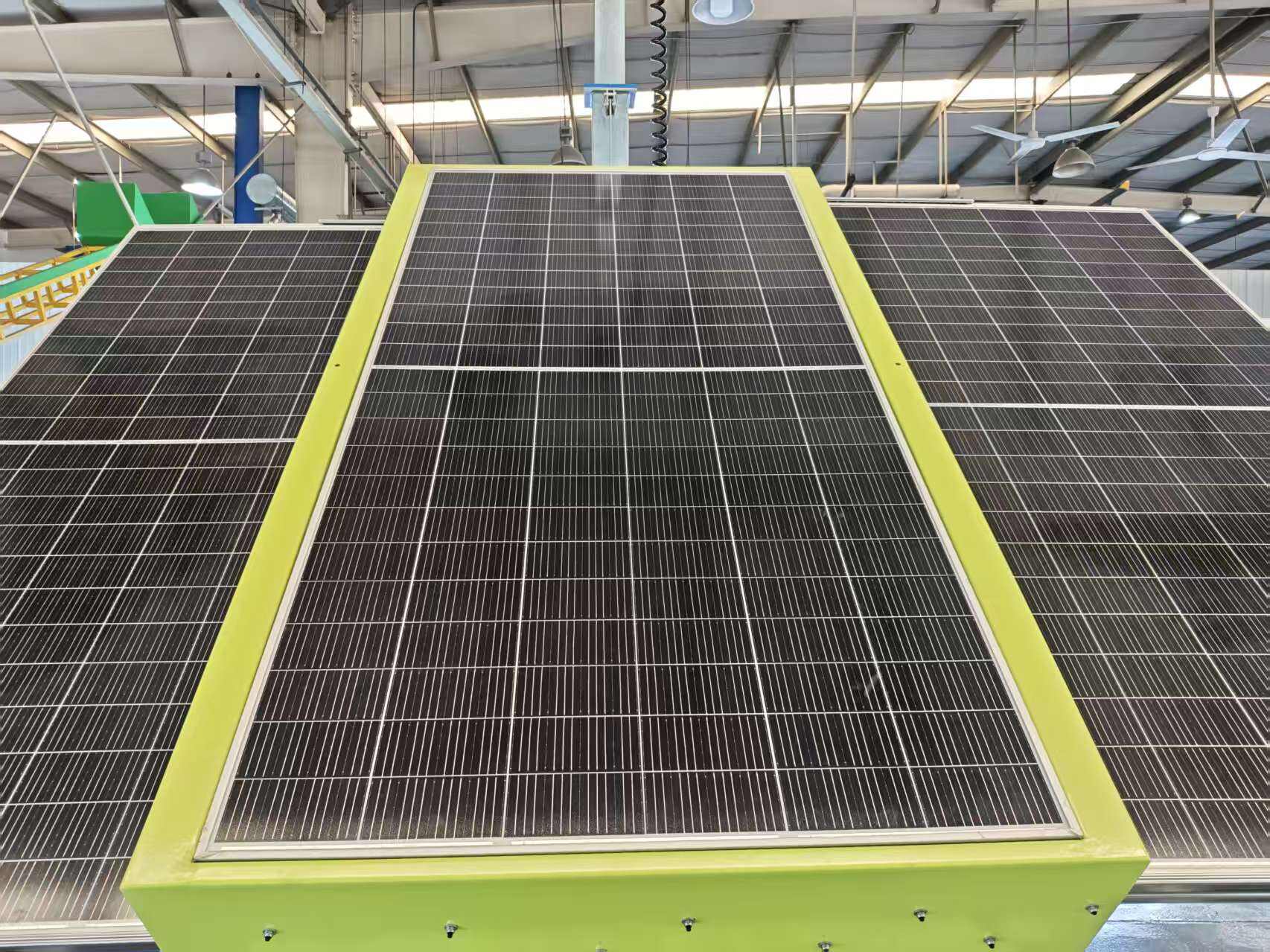

Solar panels
Mast
Tire
Outriggers

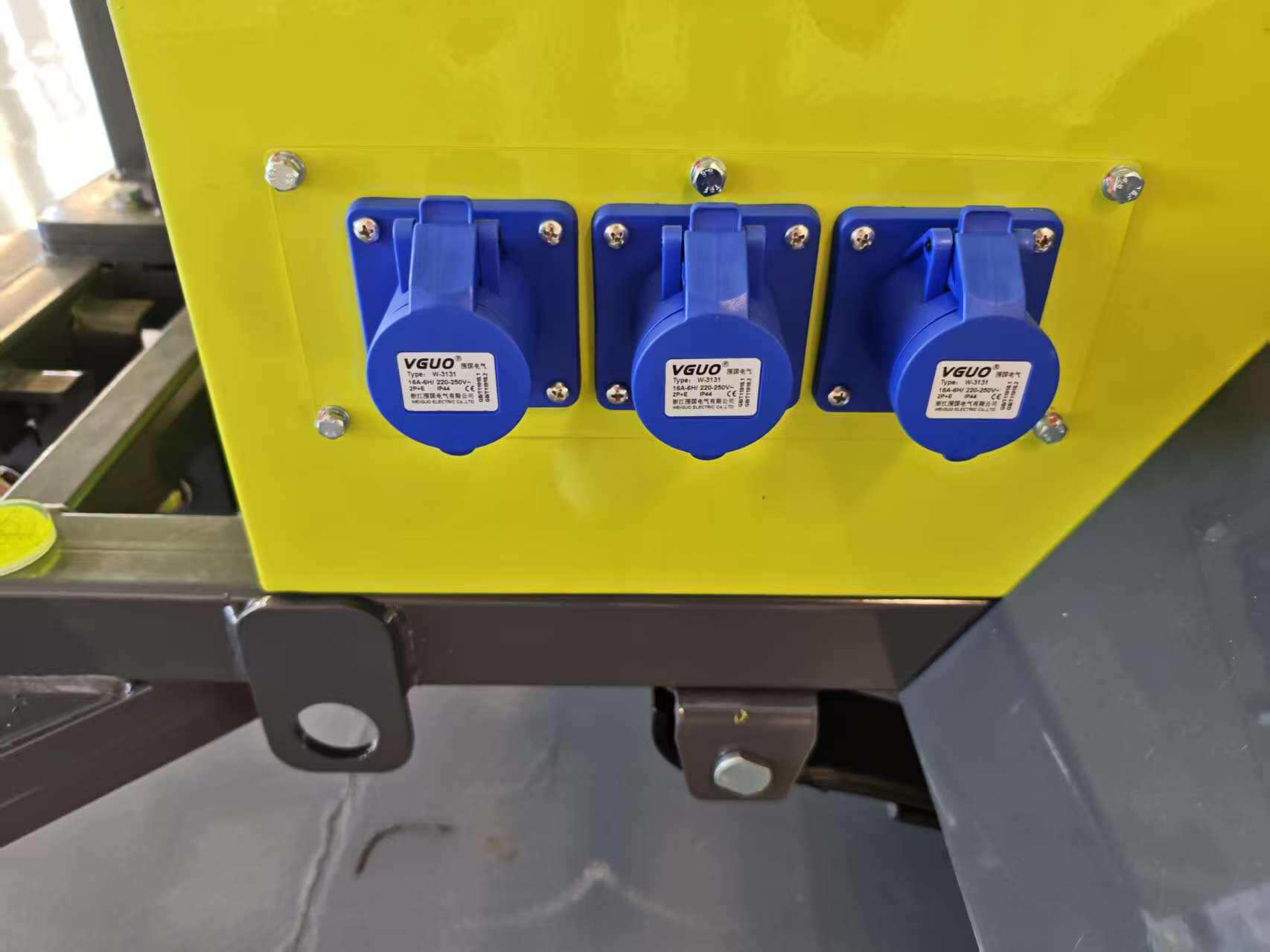

Power output port
Trailer connection point
Dashboard
LED
Manual joystick
Battery
2. Efficient LED lighting system: Energy-efficient LED lights are used to provide intense lighting while reducing power consumption.
3. Solar power system: Integrated efficient solar panels and battery storage systems enable clean, renewable energy operation with no fuel consumption.
4.360° adjustable lighting direction: The lamp head can be rotated and adjusted to provide a wider working coverage of the illumination in multiple directions.
5. Environmentally friendly operation: Solar lit towers operate with no emissions, low noise, and minimal environmental impact, making them suitable for urban and residential areas.
6. Stabilize the trailer structure: Durable trailer chassis with support legs and towing system ensures easy transportation and stable operation on different terrains.
7. Low maintenance cost: The solar power design reduces fuel costs, maintenance requirements, and operating expenses, providing a cost-effective lighting solution.
8. Wide range of application: Suitable for construction sites, road maintenance, mining, outdoor activities, emergency rescue, no electricity remote areas.
Applications
Specifications
| Technical Parameter — Solar Lifting Light Tower | |||
|---|---|---|---|
| Parameter | Value | Parameter | Value |
| Dimensions & Weight | |||
| Length | 3200mm | Width | 1630mm |
| Height | 2750mm | Fully extended height | 9m |
| Total weight | 1180kg | Packing size | 2200mm*1630mm*2330mm |
| Lighting System | |||
| Light source type | LED | Power | 4×150W |
| Luminous flux | 4×21000LM | Service life | 8000H |
| Protection level | IP68 | Lighting angle | 0-90° manual adjustment |
| Electrical & Battery | |||
| System operating voltage | DC24V | Battery type | GEL BATTERY |
| Battery capacity | 6×200AH | Battery life | 1000 CYCLES |
| Photovoltaic panel power | 3×470W | Photovoltaic panel type | Monocrystalline silicon photovoltaic panels |
| Photovoltaic panel deployment method | Heavy-duty drawer slides | ||
| Mast & Operation | |||
| Number of light pole sections | 6 | Light pole lift | Manual/Electric |
| Lifting height | 7m/9m | Illumination angle adjustment | Manual |
| Chassis & Towing | |||
| Suspension & Brakes | Leaf spring suspension & single axle without brakes | ||
| Drawbar | Towbar with retractable and adjustable traction wheel | ||
| Support Legs & Number | Four manually operated legs with retractable support bars | ||
| Rim Size | 14 inch standard tires | Drawbar Head | 2 inch or 50 mm ball tow bar |
| Taillights | Tail reflector | Maximum Towing Speed | 80 km/h (62 mph) |
| Performance & Standards | |||
| Continuous operating time | 8Hours–12Hours | Wiring harness and electrical components | General |
| Controller model | Solar controller | Maximum wind speed when fully extended | 20 m/s (45 mph) |
| Standard colors | Green/yellow housing, gray/black chassis, galvanized pole, drawbar, and support legs | ||
Competitive Advantage
Solar lift lighting tower provides powerful, reliable lighting, simple manual lift design, easy operation and maintenance. Its 7/9 m mast provides good coverage for night operations, construction sites, events and emergency works. It has a stable base and adjustable lamps that ensure broad, consistent lighting where you need it most. Compact, durable and efficient, it is ideal for field lighting projects that require reliable and economical lighting.
More than 15 years of manufacturing experience, iso certified production processes, and comprehensive in-house manufacturing capabilities ensure consistent product quality. Each machine has been rigorously tested, stable engine partnership, fast delivery, OEM/ODM custom service, and global after-sales support to ensure that you have a durable and efficient machine suitable for professional use.
By choosing peak Force, you get a high quality machine built by a trusted factory - world class reliability.
RFQ
1. What is the purpose of the lighting tower?
Electric lifting lighting tower is for the construction site, road maintenance, municipal engineering, mining operations, emergency rescue and other nighttime outdoor work to provide powerful and reliable lighting.
2. What type of lifting system does it use?
Motorized lifting masts allow easy lifting without hydraulic or electric systems. Simple operation, low maintenance cost, high reliability.
3. What is the maximum height of the mast?
The mast can be manually lifted to a maximum working height of 7/9 m to provide extensive lighting coverage for large working areas.
4. What type of lamp to use?
Equipped with high-efficiency LED lamp or metal halide lamp, high brightness, low energy consumption, long life, stable lighting performance.
5. What is the total lighting power?
The total lighting power is 4 × 150w, which provides high intensity lighting and is suitable for highly demanding outdoor environments.
6. Is the light adjustable?
Yes. Each lamp head can be rotated and adjusted independently, which can accurately direct the light to the desired position and improve the visibility and work efficiency of the site.
7. What power options are available?
It can be powered by a diesel generator or connected to an external power source, making it suitable for remote areas and urban applications.
8. Is the lighting tower easy to transport?
Yes. Its compact design and stable structure make it easy to transport, locate and deploy to different workplaces.
9. Is it suitable for outdoor use?
Absolutely. Built with durable materials and weather-resistant components, it ensures reliable operation even in harsh outdoor conditions.
10. What security features does it include?
The lighting tower includes a stable base, a secure mast locking mechanism, and a robust structural design to ensure safe operation during lifting and use.
11. What maintenance is required?
The maintenance effort is minimal due to the manual lifting system. Regular inspections include lamp inspection, mast lubrication, fastener tightening, and (if equipped) generator maintenance.
12. Can the product be customized?
Yes. We offer the following customization options: Lighting type and power supply, Generator brand and configuration, Trailer-mounted or skid-mounted base, Color and logo customization.
13. Submit methods
Please send your offer to:
Whatsapp: +86 18657133927
E-mail :charlie.jinghongruize@gmail.com
Web site: peakforcefive.com
Include the following in the subject of your email:
Quote Submission - Moving Light -[Name of your company]
14. Contact information
For technical specifications, drawings or custom inquiries, please contact the sales team
We will reply within 24 hours.
