Electric Lifting Light Tower
Inquiry NowOverview
| Place of Origin | China |
| Certification | CE |
|---|---|
| Minimum Order Quantity | 1 |
| Packaging Details | Wooden box packaging |
Description
Generator set
Mast
Tire
Outriggers

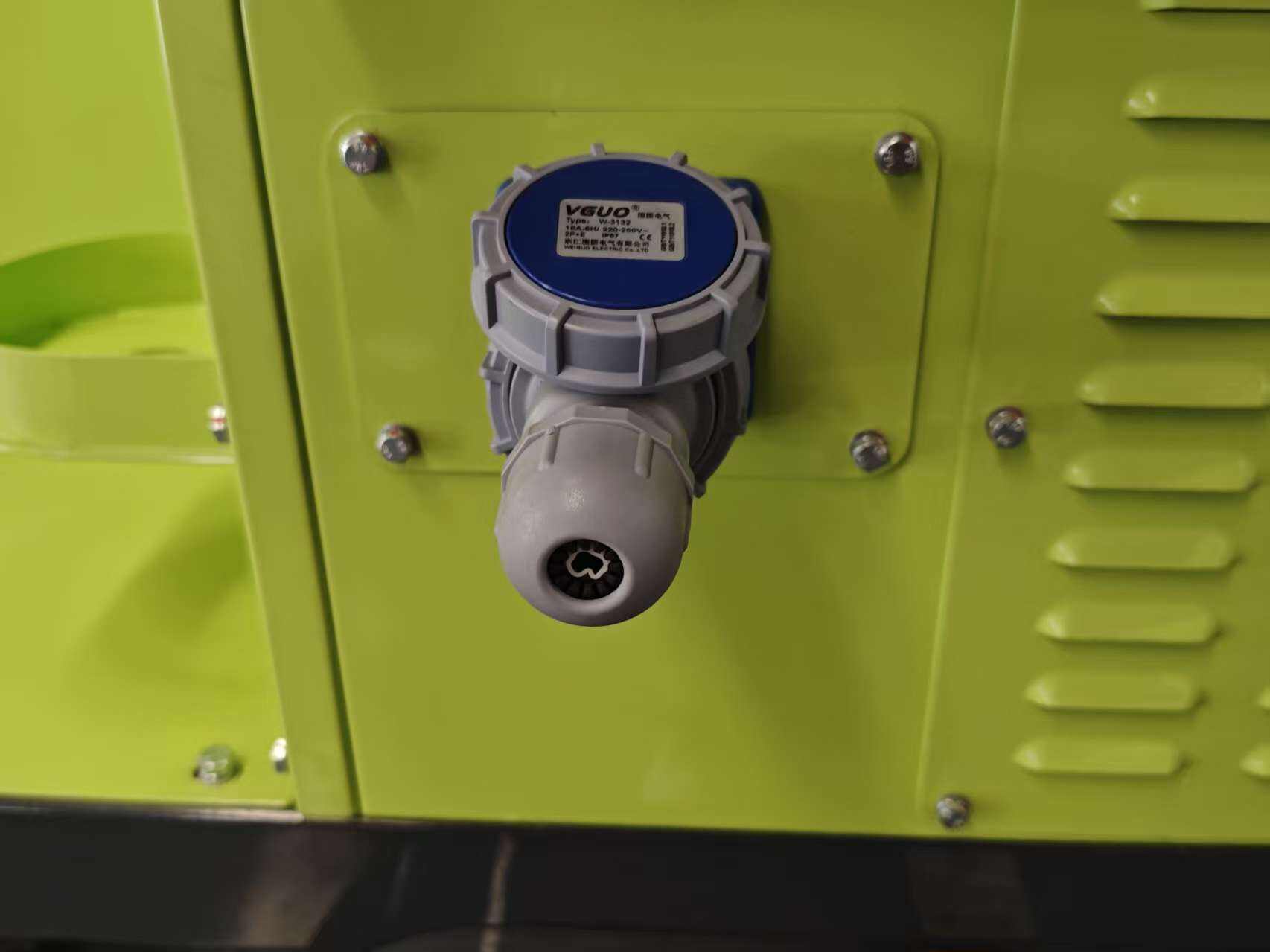

Power output port
Trailer connection point
Dashboard
LED
2. High-power lighting system: Equipped with 4 × 1000W efficient lamps, high brightness at night.
3.360° adjustable lamp head: The lighting system supports 360° rotation, allowing flexible adjustment of lighting in multiple directions.
4. Reliable power systems: A durable engine and generator system provides power, ensuring stable and continuous lighting performance.
5. Heavy duty trailer design: Robust trailer structure for easy transportation and quick deployment in different work locations.
6. Stabilize leg support: Four adjustable stabilizers provide excellent balance and safety even on uneven ground.
7. Easy to operate: Humanized electrical control system, fast lifting derrick, improve work efficiency.
8. Wide range of applications: Suitable for road construction, mine site, emergency rescue, outdoor activities, large night operations.
Applications
Specifications
| Technical Parameter — Electric Lifting Light Tower | |||
|---|---|---|---|
| Parameter | Value | Parameter | Value |
| Total length | 2450mm | Total width | 1350mm |
| Total height | 2650mm | Total weight | 860kg |
| Fully extended height | 9m | ||
| Engine Options | |||
| Engine type | Kubota Z482 | Engine type | Kubota D1105 |
| Speed | 1800rpm | ||
| Number of cylinders | 2 | Number of cylinders | 3 |
| Engine characteristics | Water-cooled four-stroke | ||
| Air intake method | Natural air intake | ||
| Emission level | Conventional | ||
| Generator & Lighting | |||
| Frequency | 60Hz | Rated voltage | 240V |
| Motor insulation class | Class H | Motor protection grade | IP65 |
| Light model | LED | Luminous flux | 90000 LM per lamp |
| Number of lights & power | 4×400W | ||
| Light pole sections | 6 | Light pole lifting | Electric |
| Light pole rotation | Maximum manual rotation 359°, self-locking | ||
| Irradiation angle adjustment | Manual | ||
| Chassis & Towing | |||
| Suspension & Braking | Leaf spring suspension & single axle without brakes | ||
| Tow bar | Traction bar with adjustable guide wheels | ||
| Support Legs & Quantity | 4 manual support legs with retractable support rods | ||
| Tire size | 14 inch regular | Traction head | 2 inch or 50 mm ball puller |
| Taillight | Tail reflector | Maximum traction speed | 80 km/h (62 mph) |
| Fuel & Operation | |||
| Fuel tank type | Iron fuel tank | Fuel tank capacity | 100 L |
| Continuous working time | 60 hours | Wiring harness and electrical components | Conventional |
| Maximum wind speed when fully extended | 20 m/s (45 mph) | Noise Level | 72 dB(A) at 7 m |
Competitive Advantage
Electric lifting lighting tower provides powerful, reliable lighting, simple manual lifting design, easy operation and maintenance. Its 9 m mast provides good coverage for night operations, construction sites, events and emergency works. It has a stable base and adjustable lamps that ensure broad, consistent lighting where you need it most. Compact, durable and efficient, it is ideal for field lighting projects that require reliable and economical lighting.
More than 15 years of manufacturing experience, iso certified production processes, and comprehensive in-house manufacturing capabilities ensure consistent product quality. Each machine has been rigorously tested, stable engine partnership, fast delivery, OEM/ODM custom service, and global after-sales support to ensure that you have a durable and efficient machine suitable for professional use.
By choosing peak Force, you get a high quality machine built by a trusted factory - world class reliability.
RFQ
1. What is the purpose of the lighting tower?
Electric lifting lighting tower is for the construction site, road maintenance, municipal engineering, mining operations, emergency rescue and other nighttime outdoor work to provide powerful and reliable lighting.
2. What type of lifting system does it use?
Motorized lifting masts allow easy lifting without hydraulic or electric systems. Simple operation, low maintenance cost, high reliability.
3. What is the maximum height of the mast?
The mast can be manually lifted to a maximum working height of 9 m to provide extensive lighting coverage for large working areas.
4. What type of lamp to use?
Equipped with high-efficiency LED lamp or metal halide lamp, high brightness, low energy consumption, long life, stable lighting performance.
5. What is the total lighting power?
The total lighting power is 4 × 1000w (4000w), providing high-intensity lighting, suitable for high-demand outdoor environments.
6. Is the light adjustable?
Yes. Each lamp head can be rotated and adjusted independently, which can accurately direct the light to the desired position and improve the visibility and work efficiency of the site.
7. What power options are available?
It can be powered by a diesel generator or connected to an external power source, making it suitable for remote areas and urban applications.
8. Is the lighting tower easy to transport?
Yes. Its compact design and stable structure make it easy to transport, locate and deploy to different workplaces.
9. Is it suitable for outdoor use?
Absolutely. Built with durable materials and weather-resistant components, it ensures reliable operation even in harsh outdoor conditions.
10. What security features does it include?
The lighting tower includes a stable base, a secure mast locking mechanism, and a robust structural design to ensure safe operation during lifting and use.
11. What maintenance is required?
The maintenance effort is minimal due to the manual lifting system. Regular inspections include lamp inspection, mast lubrication, fastener tightening, and (if equipped) generator maintenance.
12. Can the product be customized?
Yes. The following customization options are available: Lighting type and power supply, Generator brand and configuration, Trailer-mounted or skid-mounted base, Color and logo customization.
