Rubber Tyre Combination Vibratory Roller
Inquiry NowOverview
| Place of Origin | China |
| Certification | CE |
| Minimum Order Quantity | 1 |
| Packaging Details | Wooden box packaging |
Description

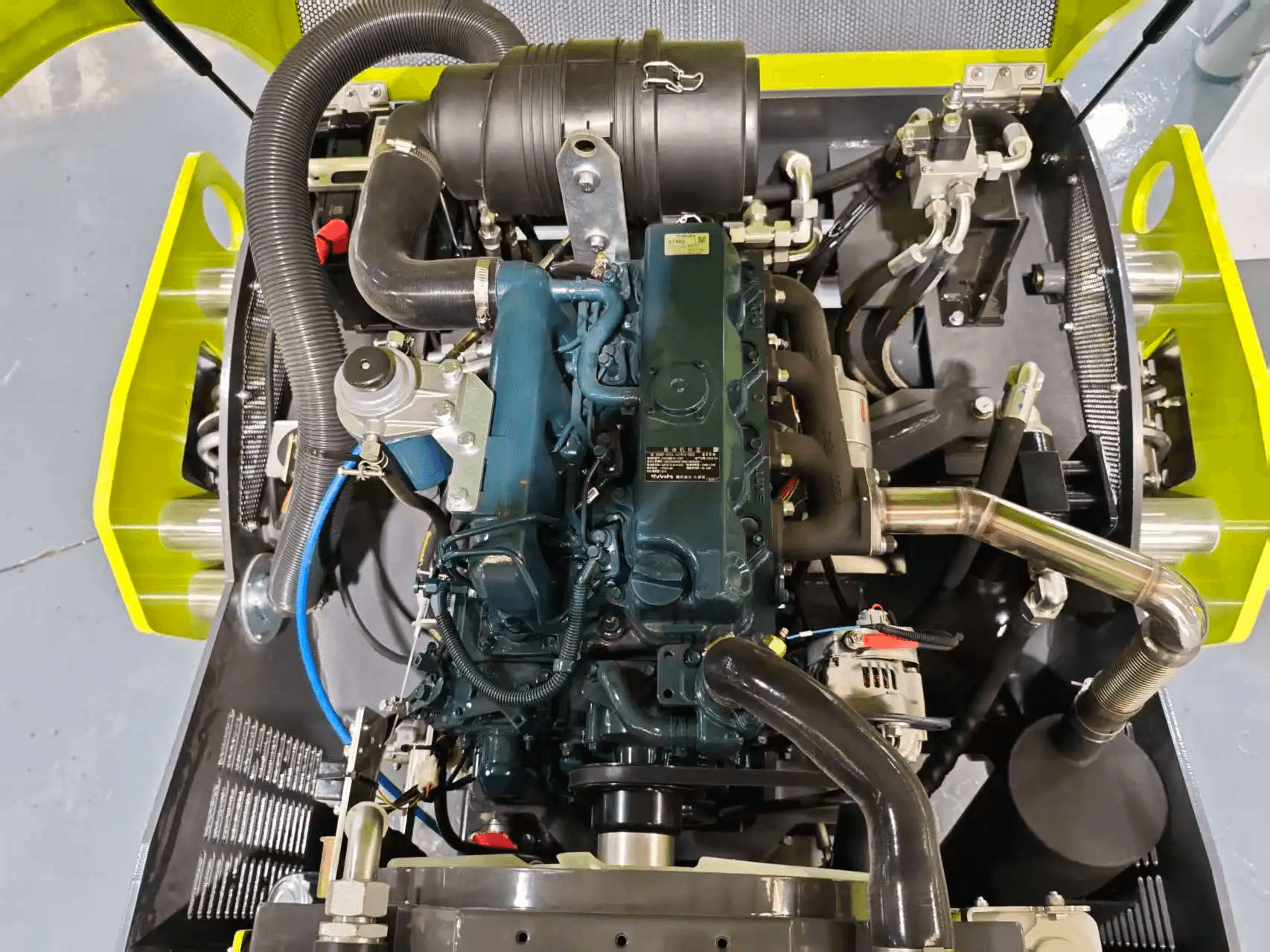

Engine
Steel wheel
Rubber tires
Vibration button
Dashboard
Articulated design
Sprinkler system
Seat
Vibration motor
Drive motor
1. Strong compression performance: With a working weight of 5000 kg and an exciting force of 68 kN, it provides a strong and consistent compaction effect, ensuring a high density surface and a long road durability.
2. Advanced vibration system: The front vibration drum operates at 50hz with an amplitude of 0.5 mm, providing uniform compaction efficiency and smooth surface machining.
3. Reliable engine selection: Equipped with high quality diesel engines, including Changchai ZN490B, Yanma 4TNV88, Kubota V2403, etc., the maximum power can reach 36 kW, stable and efficient operation under various working conditions.
4. Hydraulic drive & Articulated steering: Hydraulic motor drive combined with hydraulic cylinder articulated steering ensures smooth travel, flexible maneuverability and precise control even in constrained workplaces.
5. Wide cover, good stability: The 1400 mm drum width and optimized 900 mm drum diameter provide excellent compaction coverage. Four heavy-duty tires enhance balance and traction during operation.
6. Flexible speed control: 0-12km/h CVT drive, can adjust the performance according to the project requirements.
7. Excellent climbing ability: Climbing up to 35% (vibration on) and 40% (vibration off), reliable performance on slopes and uneven terrain.
8. Large capacity intelligent water spraying system: Intermittent pressure sprinkler system prevents asphalt from sticking. Large capacity tanks (180L water, 44.5L fuel, 60L hydraulic fluid) ensure extended working hours and reduced downtime.
Applications
Specifications
| Technical Parameter — 5000D-5 Ton Rubber Tyre Combination Vibratory Roller | |||
|---|---|---|---|
| Parameter | Value | Parameter | Value |
| Operating weight | 5000kg | Static line load | 140 N/cm |
| Working width | 1580mm | Overall length | 3000mm / 2905mm |
| Overall height | 2025mm / 2680mm | Turning radius | 4380mm |
| Drum width | 1400mm | Drum diameter | 900mm |
| Wheelbase | 1960mm | Steel drum thickness | 17mm |
| Staggered wheel | 50mm | Tire size | 10.5/80-16 |
| Total tire width | 1340mm | Number of tires | 4 |
| Supporting method | Middle support/Both sides support | ||
| Engine Options | |||
| Engine brand | Changchai | YANMAR | Kubota |
| Engine model | ZN490B | 4TNV88 | V2403 |
| Engine type | Diesel inline water-cooled four-stroke | ||
| Number of cylinders | 4 | Output Power | 36kW / 34.5kW / 33.6kW |
| Rotating speed | 2400rpm / 3000rpm / 2400rpm | Electrical Equipment | 12V |
| Drive mode | Hydraulic motor drive | ||
| Speed (infinitely variable) | 0-12km/h | ||
| Theoretical gradeability (vibration on/off) | 35% / 40% | ||
| Working brake | Variable displacement piston pump | ||
| Steering method | Hydraulic Cylinder Articulated Steering | ||
| Steering system | Swing articulated | ||
| Vibrating drum | Front | ||
| Drive form | Hydraulic motor | ||
| Vibration frequency | 50Hz | Vibration amplitude | 0.5mm |
| Exciting force | 68kN | Sprinkler form | Intermittent pressure spray |
| Hydraulic oil capacity | 60L | Fuel capacity | 44.5L |
| Water tank capacity | 180L | ||
Competitive Advantage
This is a versatile rubber tire combination roller that combines powerful compaction with excellent maneuverability and traction. Its rubber tire design can roll smoothly on asphalt and soil while reducing surface damage, making it ideal for urban roads and pavement engineering. Ensure consistent performance on medium and large projects with reliable engine options and durability. It is a solid option for contractors and public works teams looking for efficiency, comfort and long run.
over twenty years of manufacturing expertise, iso certified production, and complete in-house manufacturing to ensure consistent quality. Each engine is rigorously tested for drum balance, vibration strength, and engine performance. Stable engine partnership, fast delivery, OEM/ODM customization, and global after-sales support ensure that the machine is durable, efficient, and ready for professional use.
Choose us because you get quality machines backed by a trustworthy factory - small size, high power and world-class reliability.
RFQ
1. Product information
We invite qualified suppliers, distributors and global distributors to submit quotes for our range of roller products. This query covers various models, including but not limited to:
300kg walking single drum roller
500kg walking rear double roller roller
600kg walking double roller roller
800kg hydraulic walking rear double roller roller
Double drum and single drum models
OEM/ODM roller can be customized according to customer requirements
Key features include:
High compression performance
KAMA/Honda/Changfa/Changchai engine options
Full hydraulic drive (some models)
Miniature design, suitable for a variety of construction sites
Suitable for asphalt, soil, road maintenance and compaction in narrow areas
2. Demand for quotation
Your quotation should include the following details:
2.1 Product Configuration
Model and engine brand
Drum size and vibration frequency
Hydraulic system configuration (if applicable)
Optional accessories (water tank, scraper, LED light, etc.)
Color customization (yes/No)
2.2 Pricing Requirements
Please provide:
Unit price (EXW/FOB/CIF - please specify)
Minimum Order Quantity (MOQ)
Discount on volume
Time of delivery
Warranty terms
Spare parts price (if any)
3. Supplier qualification requirements
The following documents should be provided:
Company Profile
Production capacity description
Related experience in construction machinery products
Dealer network (if applying as a dealer)
4. Delivery and packing
Standard export wooden case/iron frame packing
Ship domicile: Shandong, China
Estimated production time: 15-25 days (depending on model and quantity)
5. Submit method
Please send your offer to:
Whatsapp: +86 18657133927
E-mail :charlie.jinghongruize@gmail.com
Web site :peakforcefive.com
(Quotation can be uploaded through the enquiry form)
Include the following in the subject of your message:
Quote submission - Roller -[Name of your company]
7. Contact information
For technical specifications, drawings or custom inquiries, please contact the sales team
We will reply within 24 hours.
