Combination Roller
Inquiry NowOverview
| Place of Origin | China |
| Certification | CE |
| Minimum Order Quantity | 1 |
| Packaging Details | Wooden box packaging |
Description
Engine
Steel wheel
Rubber tires
Vibration button
Dashboard
Articulated design
Sprinkler system
Seat
1. Key features: Steel drum + rubber tire combination combines: Front vibrating steel barrel for initial and deep compaction force, Rear rubber tire rollers for kneading action and surface sealing. This combination increases the asphalt density, reduces air voids, and ensures a smooth, durable pavement surface.
2. Reliable diesel power system: Equipped with a proven diesel engine, it provides steady power output, strong torque and reliable performance for continuous daily operation while maintaining good fuel efficiency.
3. Efficient compression performance: The optimized vibration system achieves uniform compaction with fewer passes. The rubber tire part improves the surface quality and can realize the asphalt pavement and finishing work.
4. Compact design, good mobility: Its compact body and tight turning radius make it ideal for: Urban and municipal road works, Sidewalks, bike lanes and parking lots, Road repair and maintenance work. Convenient transportation, flexible operation, improve the overall work efficiency.
5. Full hydraulic drive system: Full hydraulic transmission system, smooth stroke, precise control, reliable operation. Hydraulic steering and vibration reduce mechanical wear and simplify maintenance.
6. Durable, low-maintenance construction: Heavy steel frames and high quality hydraulic components provide long service life, reduced downtime and reduced operating costs.
7. Easy operation and control: Ergonomic controls, clear gauges and smooth steering improve operator comfort and productivity during long working hours.
Applications
Specifications
| Technical Parameter — Combination Roller (BM2000D) | |||
|---|---|---|---|
| Parameter | Value | Parameter | Value |
| Operating weight | 2000kg | Static line load | 105 N/cm |
| Working width | 1150mm | Overall machine length | 2345mm |
| Overall machine height (protective frame tilted/erected) | 1860 / 2535mm | Turning radius (inside) | 2950mm |
| Drum wheel width (front) | 1000mm | Drum wheel diameter (front) | 630mm |
| Wheelbase | 1565mm | Drum wheel thickness (front) | 12mm |
| Wrong wheel (left/right) | 50mm | Tire size (rear) | 630 × 200mm |
| Overall tire width (rear) | 980mm | Number of tires (rear) | 4 |
| Support method | Middle support | ||
| Engine Options | |||
| Engine brand | Changchai | Kubota | Yanmar |
| Engine model | 3M78 | D1105 | 3TNV80F |
| Engine type | Four-stroke water-cooled diesel | ||
| Number of cylinders | 3 | Output power | 19 kW / 18.2kW / 18.6kW |
| Rotating speed | 3200rpm | ||
| Electrical equipment | 12V | ||
| Drive mode | Variable piston pump, continuously variable speed, 1 front & 2 rear motors in parallel | ||
| Speed (continuously variable) | 0–8km/h | ||
| Theoretical gradeability (vibration on/off) | 30% / 35% | ||
| Swing angle | 8° | Steering method | Hydraulic steering, pivot articulated |
| Vibration drum | Front | Vibration form | Hydraulic motor |
| Vibration frequency (front) | 65Hz | Vibration amplitude (front) | 0.5mm |
| Exciting force | 35kN | Form | Intermittent electronic pressure water spray |
| Water tank material | Rotational molding water tank | ||
| Steel wheel lubricant | 1.4L | Emulsion tank | 35L |
| Hydraulic oil capacity | 45L | Fuel capacity | 36L |
| Water tank capacity | 160L | ||
Competitive Advantage
This is a multifunctional rubber tire combination roller, which combines strong compaction performance with excellent maneuverability and traction. Its rubber tire design can roll smoothly on asphalt and soil while reducing surface damage, making it ideal for urban roads and pavement engineering. Ensure consistent performance on medium and large projects with reliable engine options and durability. It is a solid option for contractors and public works teams looking for efficiency, comfort and long run.

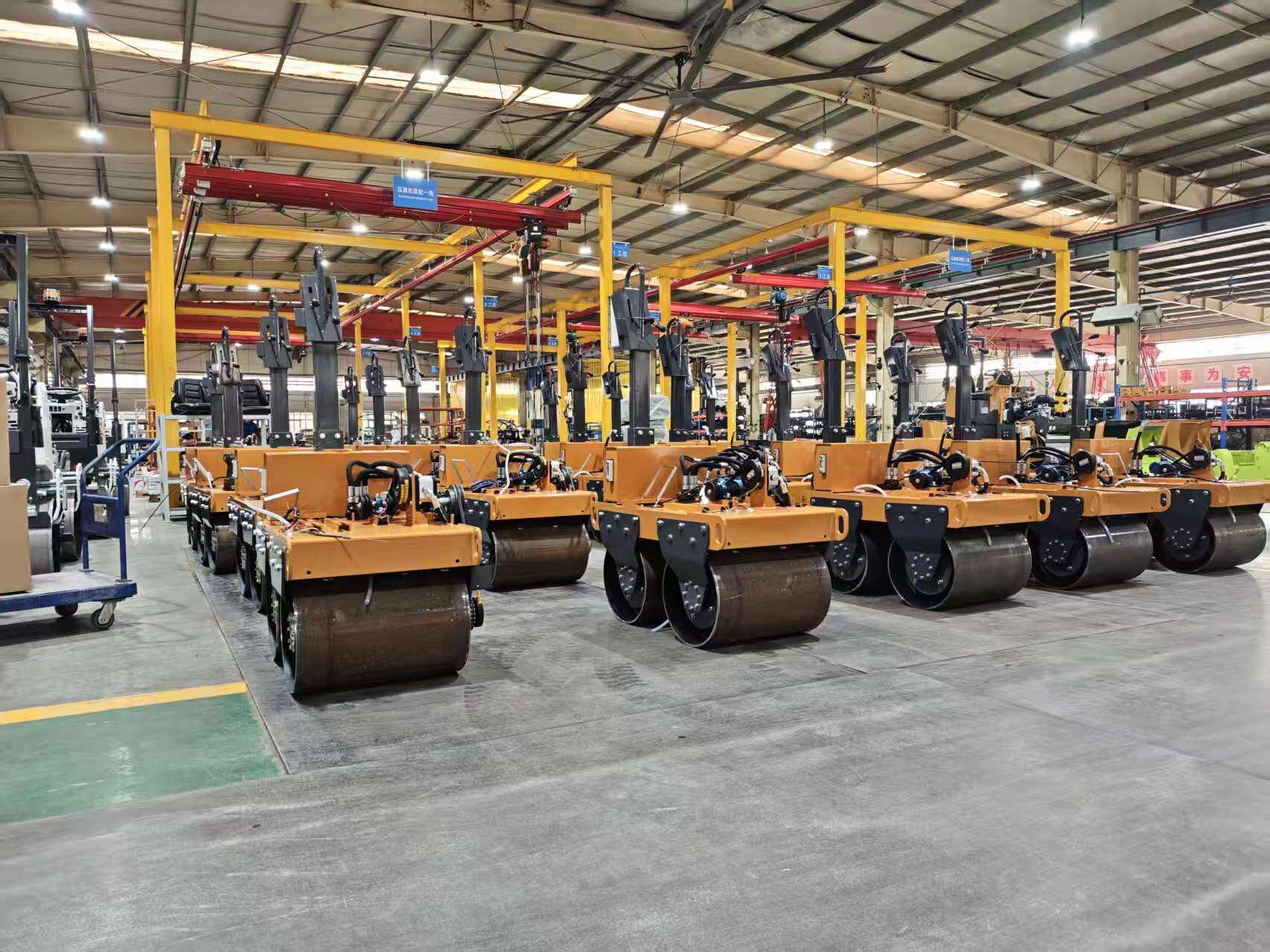

over twenty years of manufacturing expertise, iso certified production, and complete in-house manufacturing to ensure consistent quality. Each engine is rigorously tested for drum balance, vibration strength, and engine performance. Stable engine partnership, fast delivery, OEM/ODM customization, and global after-sales support ensure that the machine is durable, efficient, and ready for professional use.
Choose us because you get quality machines backed by a trustworthy factory - small size, high power and world-class reliability.
RFQ
1. Product information
We invite qualified suppliers, distributors and global distributors to submit quotes for our range of roller products. This query covers various models, including but not limited to:
300kg walking single drum roller
500kg walking rear double roller roller
600kg walking double roller roller
800kg hydraulic walking rear double roller roller
Double drum and single drum models
OEM/ODM roller can be customized according to customer requirements
Key features include:
High compression performance
KAMA/Honda/Changfa/Changchai engine options
Full hydraulic drive (some models)
Miniature design, suitable for a variety of construction sites
Suitable for asphalt, soil, road maintenance and compaction in narrow areas
2. Demand for quotation
Your quotation should include the following details:
2.1 Product Configuration
Model and engine brand
Drum size and vibration frequency
Hydraulic system configuration (if applicable)
Optional accessories (water tank, scraper, LED light, etc.)
Color customization (yes/No)
2.2 Pricing Requirements
Please provide:
Unit price (EXW/FOB/CIF - please specify)
Minimum Order Quantity (MOQ)
Discount on volume
Time of delivery
Warranty terms
Spare parts price (if any)
3. Supplier qualification requirements
The following documents should be provided:
Company Profile
Production capacity description
Related experience in construction machinery products
Dealer network (if applying as a dealer)
4. Delivery and packing
Standard export wooden case/iron frame packing
Ship domicile: Shandong, China
Estimated production time: 15-25 days (depending on model and quantity)
5. Submit method
Please send your offer to:
Whatsapp: +86 18657133927
E-mail :charlie.jinghongruize@gmail.com
Web site :peakforcefive.com
(Quotation can be uploaded through the enquiry form)
Include the following in the subject of your message:
Quote submission - Roller -[Name of your company]
7. Contact information
For technical specifications, drawings or custom inquiries, please contact the sales team
We will reply within 24 hours.
