Compactor

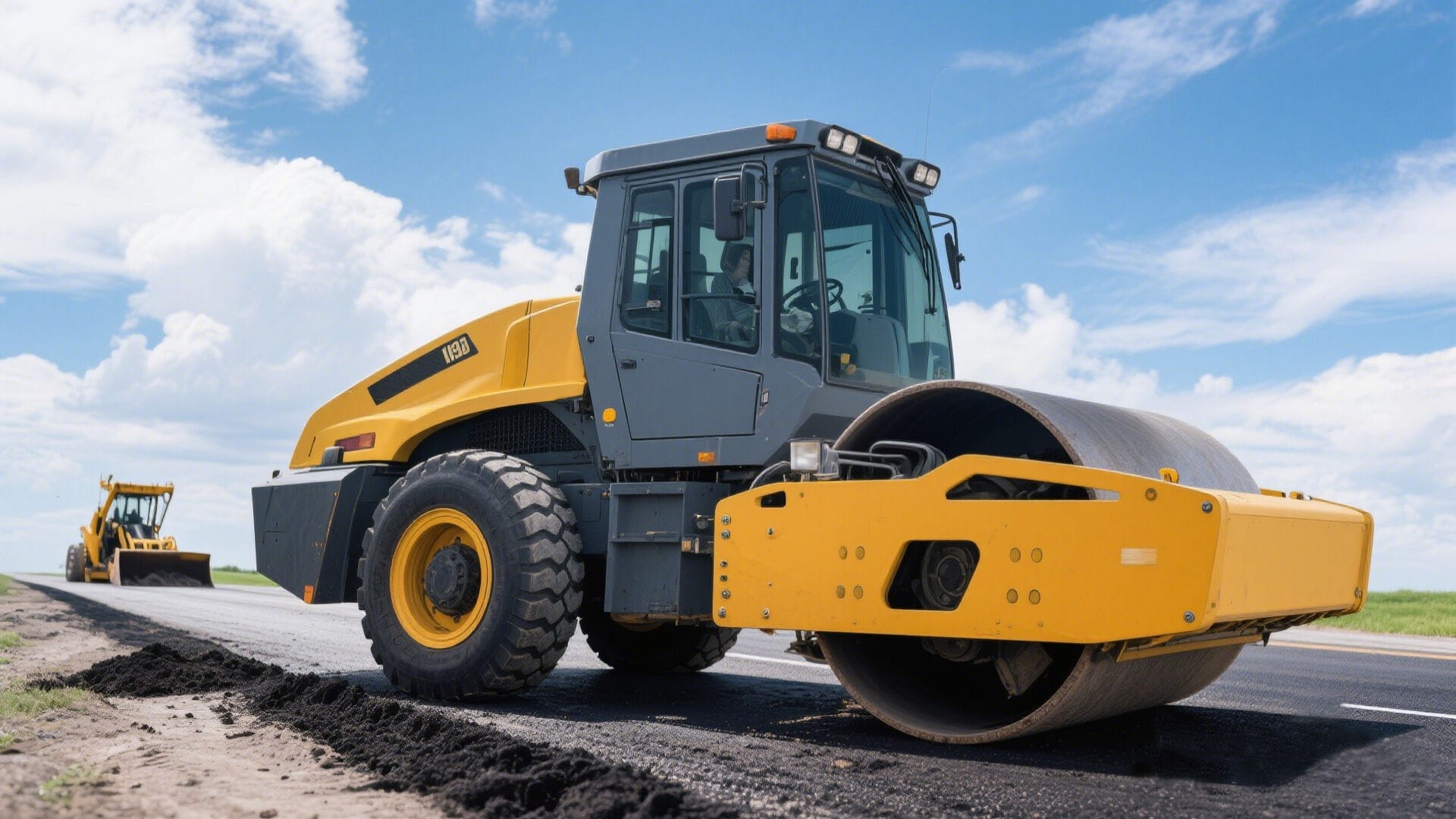

Inquiry NowOverview
| Place of Origin | China |
| Certification | CE |
| Minimum Order Quantity | 1 |
| Packaging Details | Wooden box packaging |
Description

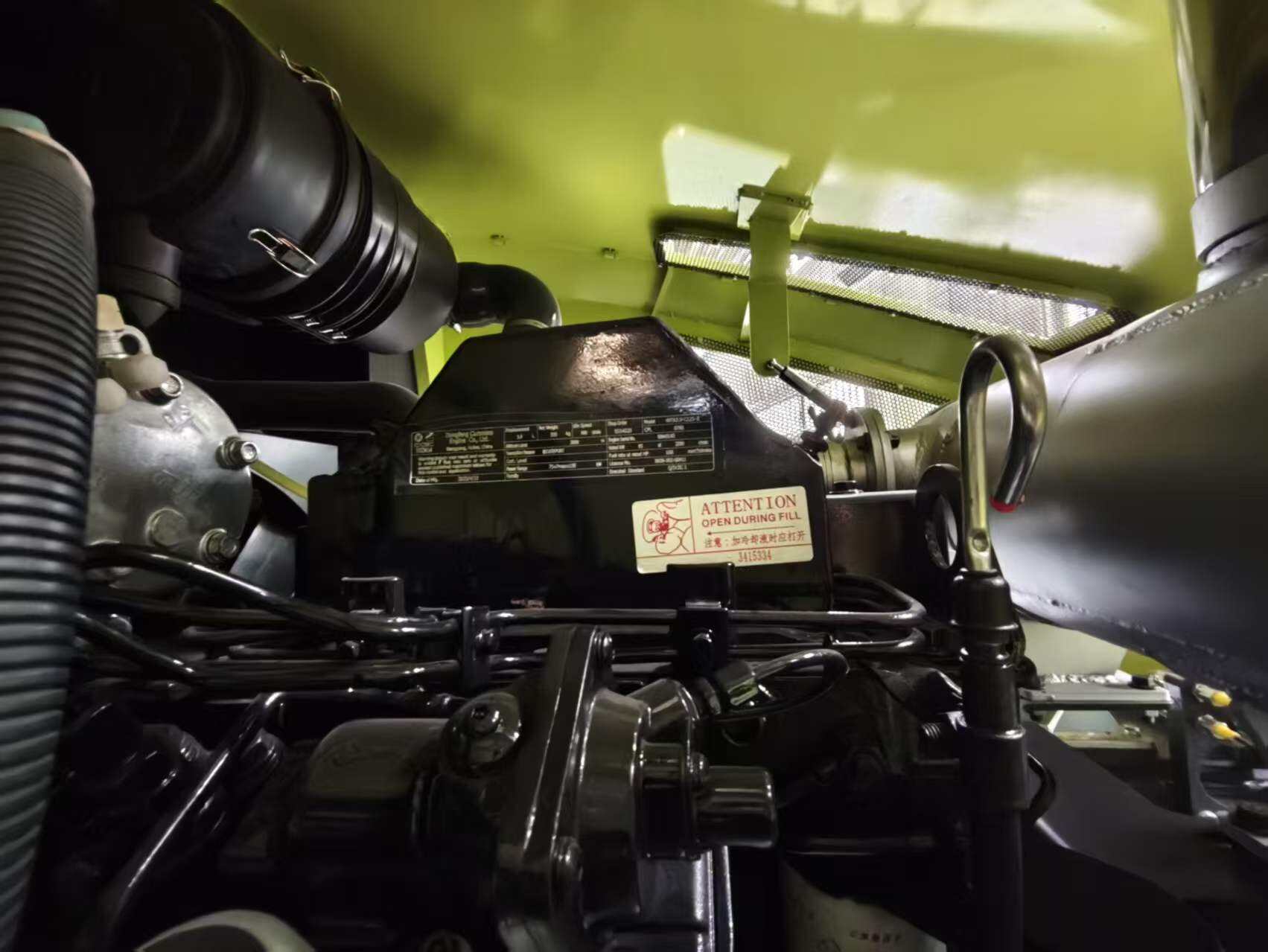

Engine

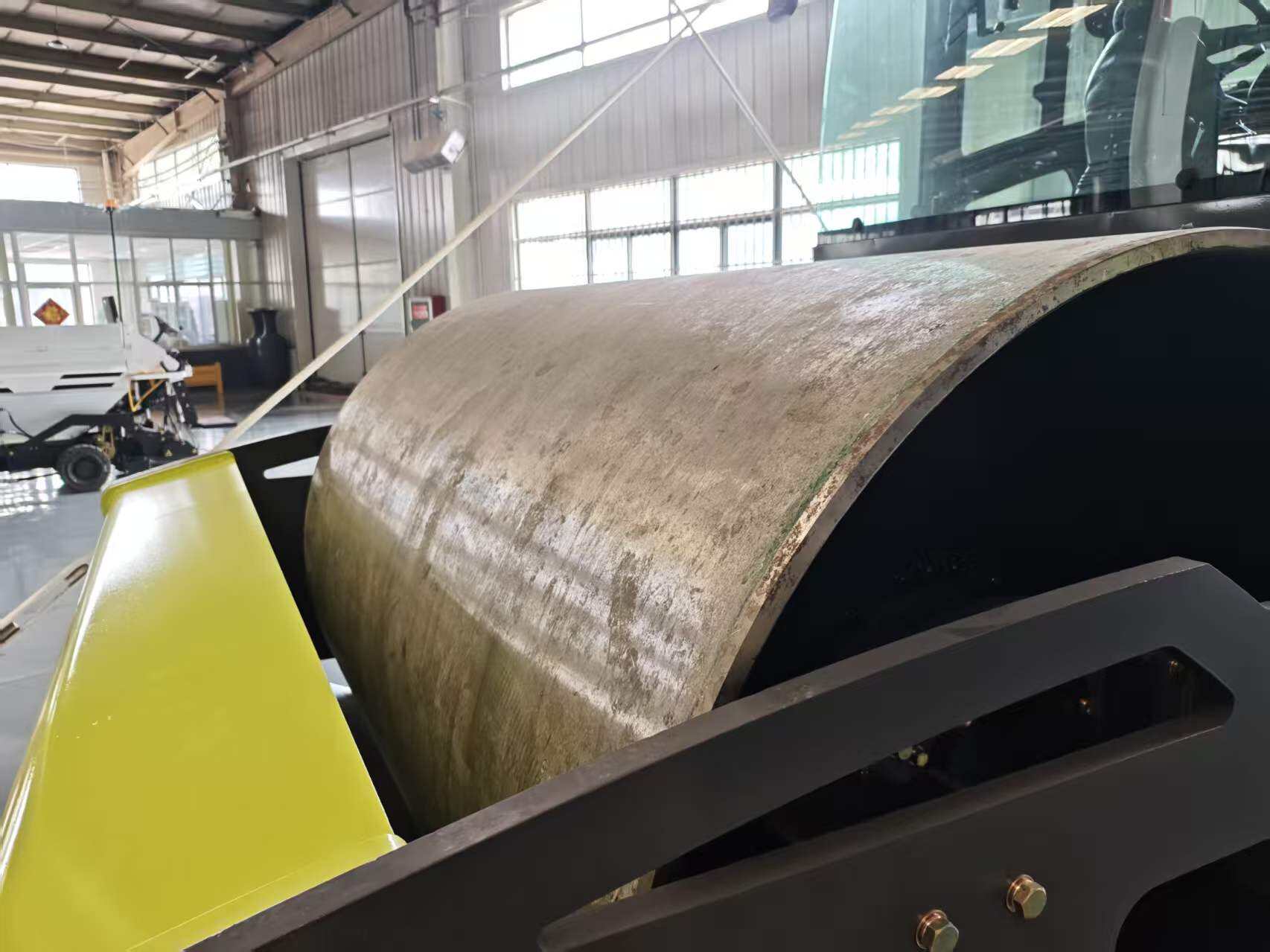

Steel wheel

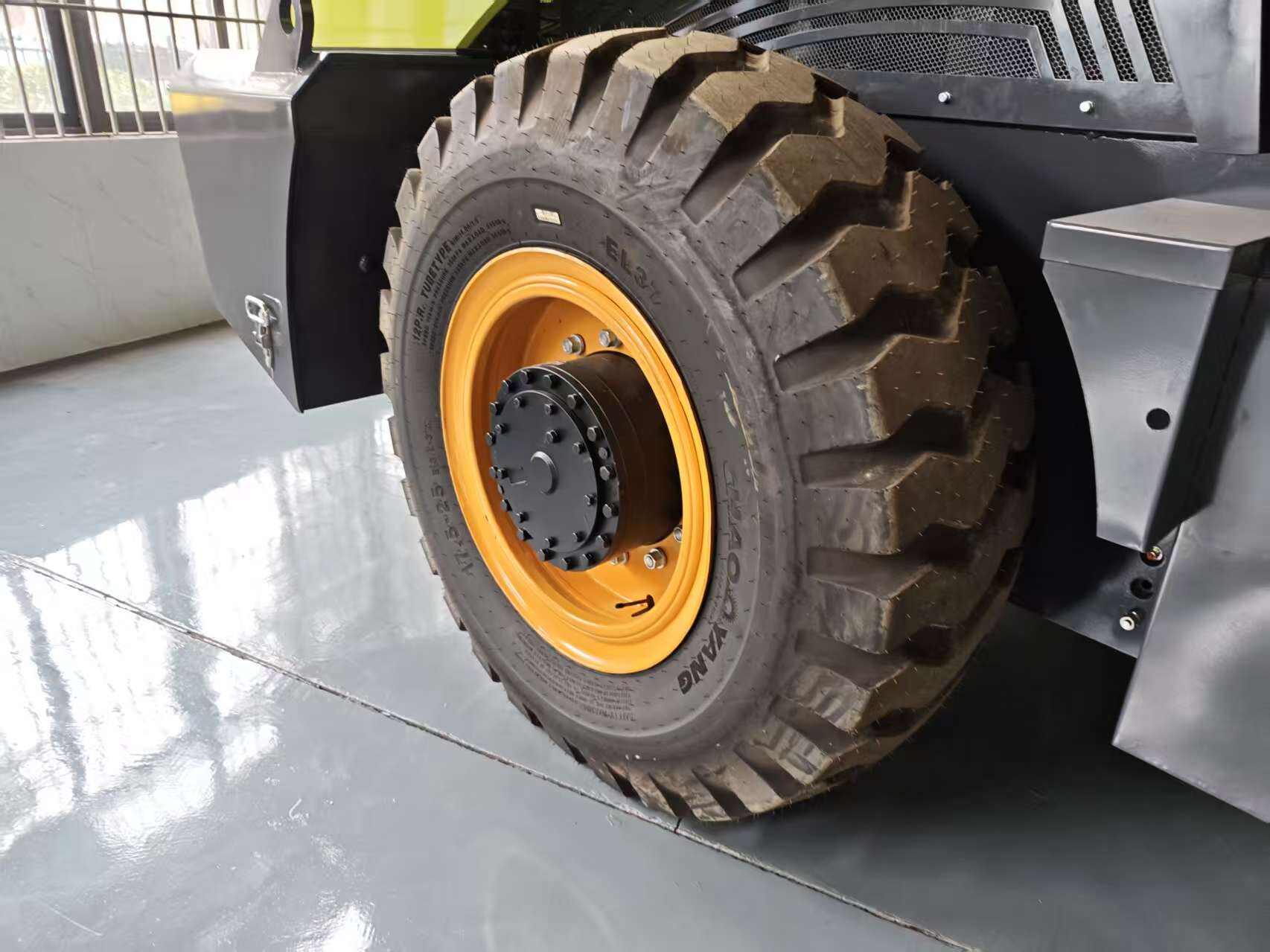

Tire

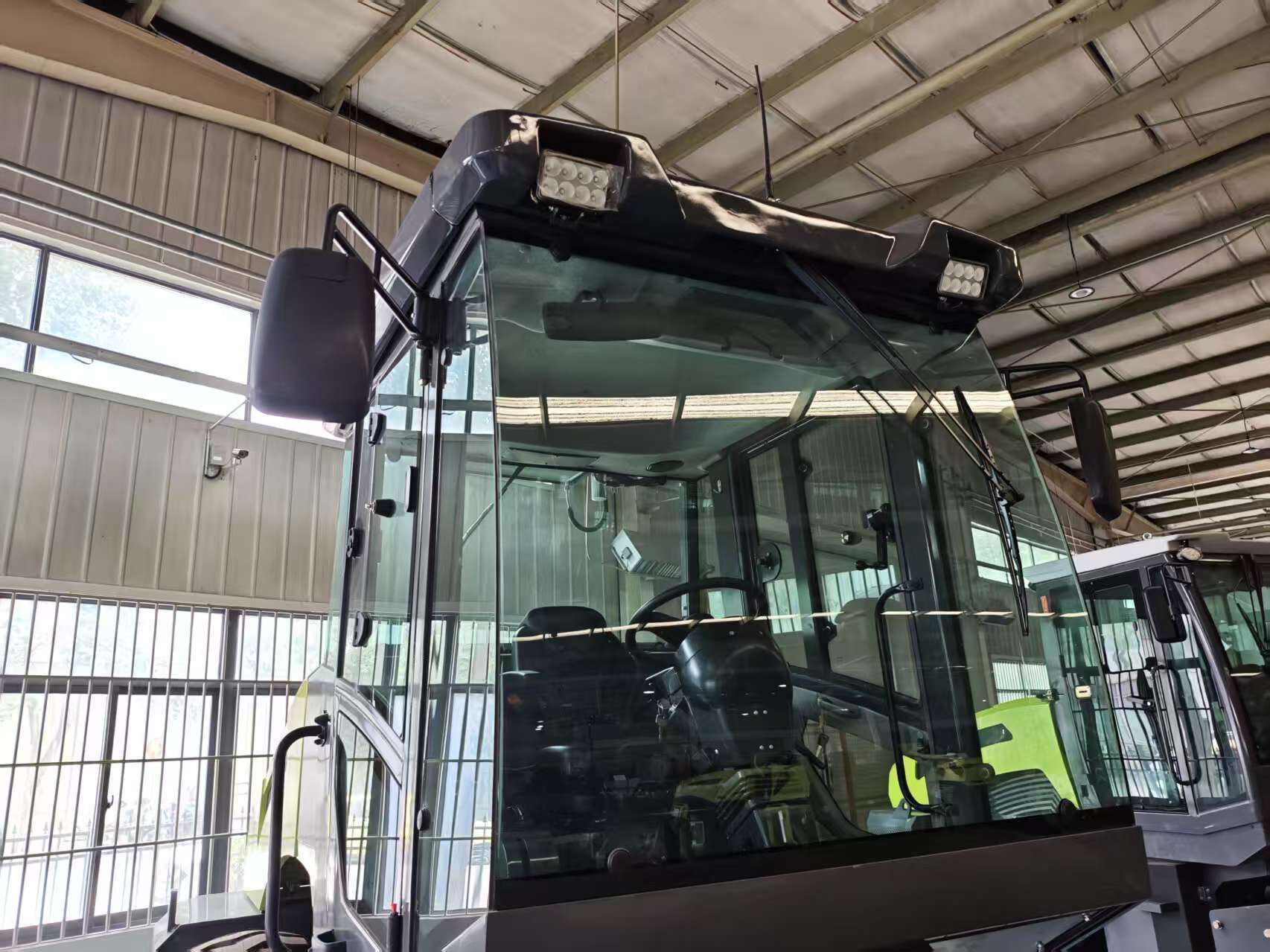

Cab

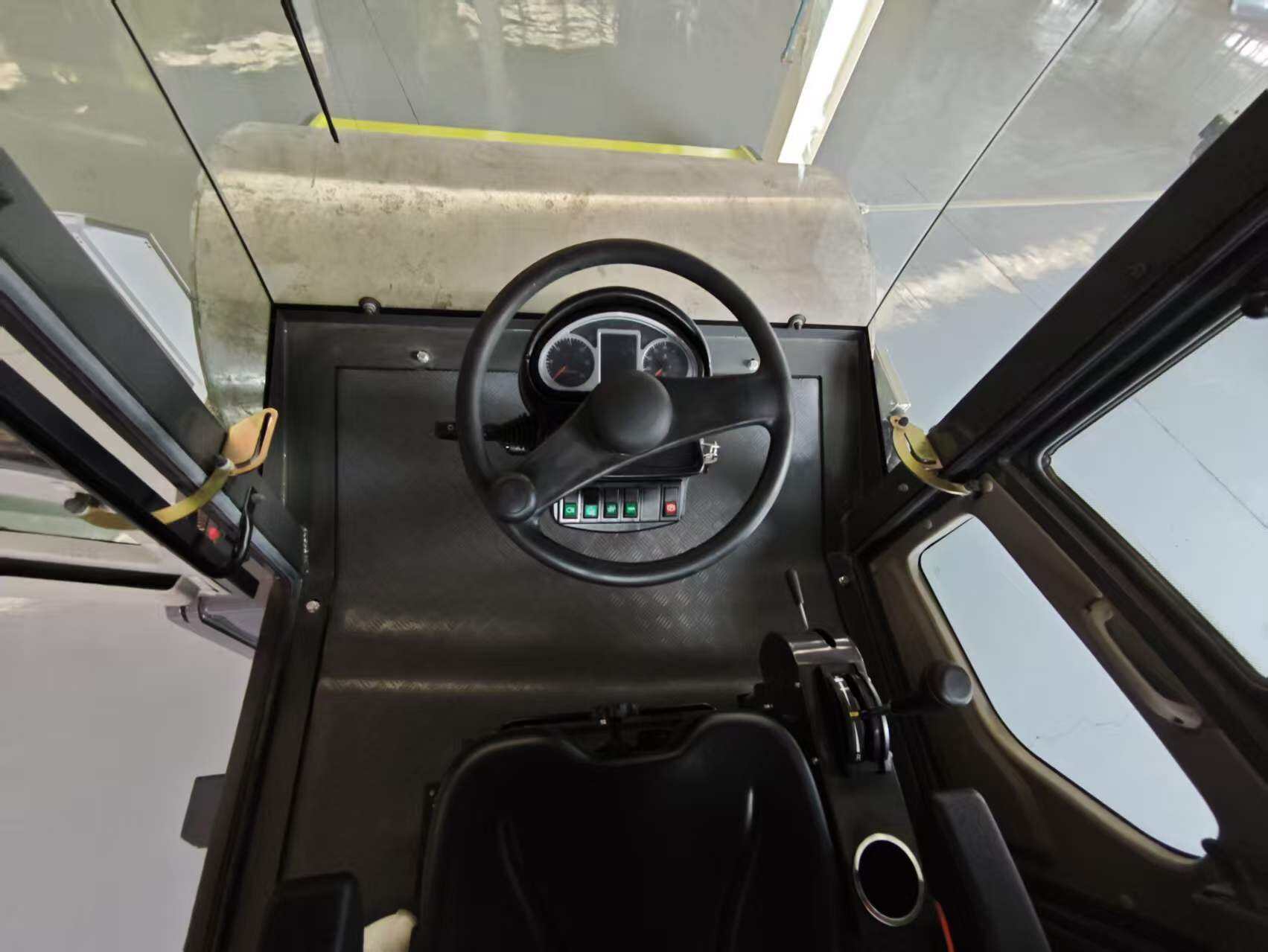

Dashboard

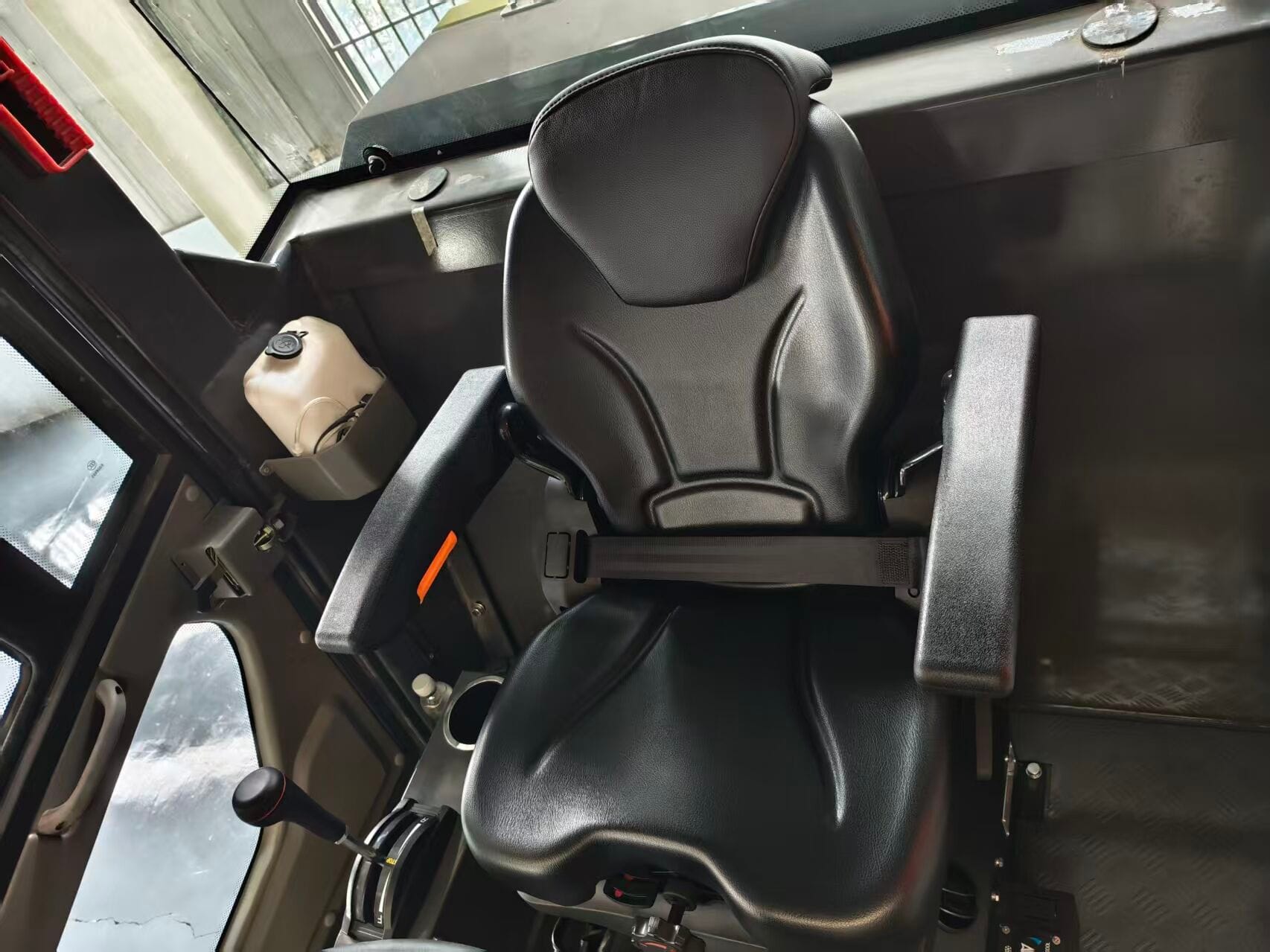

Seat
1. Powerful and reliable engines
Equipped with a high performance diesel engine, it provides strong torque output, stable power transfer and fuel efficiency. The engine ensures consistent performance under harsh operating conditions such as embankment and foundation compaction.
2. Efficient vibration system
The front steel drum features a hydraulic vibration-driven system that generates strong centrifugal force for deep compaction. Optimized vibration frequency and amplitude ensure fewer channels and increased productivity.
3. It has a strong vibration force for deep soil penetration, stable vibration performance, suitable for gravel, sand, gravel, mixed soil.
4. Full hydraulic drive system
A complete hydraulic transmission system for stroke and vibration provides: Smooth stepless speed control, Reliable hydraulic motor drive, Low maintenance requirements, Improve work efficiency.
5. Excellent climbing and stable performance
Efficient performance on slopes and uneven terrain due to balanced weight distribution and strong traction. Suitable for road base construction and large foundation projects.
6. Operator comfort and safety
Ergonomic control layout, responsive steering system and shock absorption design reduce operator fatigue. Clear instrumentation ensures easy monitoring of machine status for safe production operations.
7. Strong structure, easy maintenance
Built with reinforced frames and heavy duty drums to ensure long service life. A friendly service layout allows quick access to critical components, reducing downtime and maintenance costs.
Applications

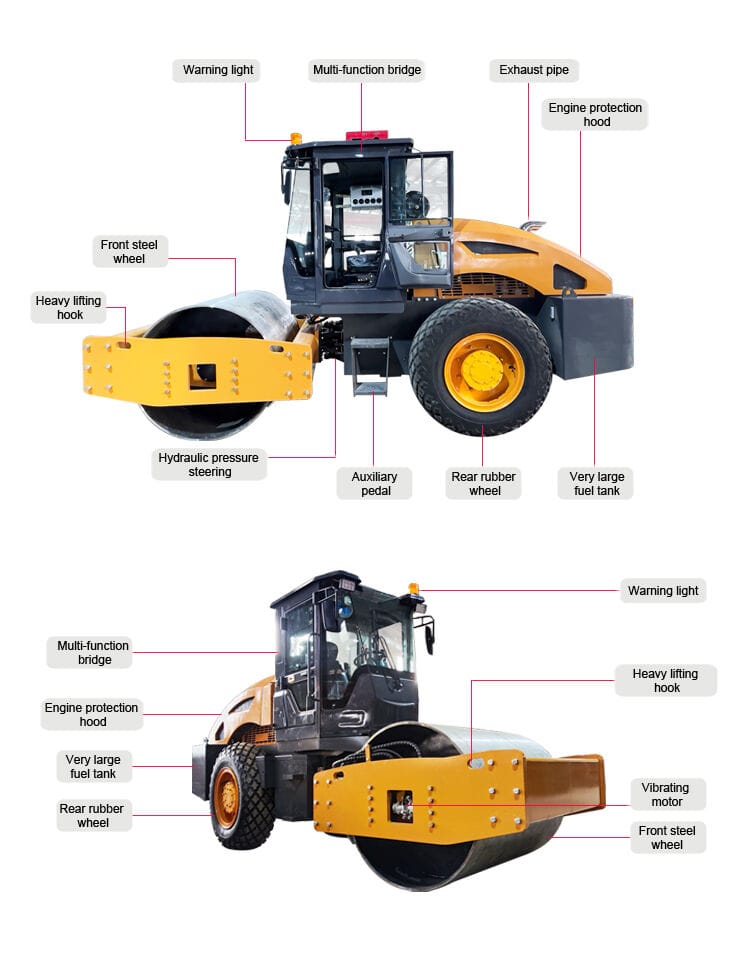

Specifications
| Technical Parameter — Compactor (STS12) | |||
|---|---|---|---|
| Parameter | Value | Parameter | Value |
| Model | STS12 | Operating weight | 12000kg |
| Static line load | 310N/cm | Working width | 2260mm |
| Overall length | 5920mm | Overall height | 2950mm |
| Turning radius | 7000mm | Drum width | 2100mm |
| Drum diameter | 1500mm | Wheelbase | 3015mm |
| Steel drum thickness | 25mm | Tire material | Rubber |
| Tire size | 1350mm | Tire type | 17.5-25 |
| Number of tires | 2 | Supporting method | Support on both sides |
| Engine | |||
| Engine brand | Dongfeng Cummins | ||
| Engine model | 4BTA3.9-C125-II | ||
| Engine type | Diesel inline water-cooled four stroke | ||
| Number of cylinders | 4 | Output power | 93kW |
| Rotational speed | 2200rpm | Electrical equipment | 24V |
| Drive type | Variable displacement piston pump infinitely variable speed (rear drive) | ||
| Speed | 0–10km/h | Theoretical climbing ability | 30% |
| Swing angle | 8° | Steering mode | Dual cylinder hydraulic steering |
| Vibrating steel wheel | Front | Vibration form | Hydraulic motor vibration |
| Vibration frequency | 50Hz | Vibration amplitude | 1mm–1.7mm |
| Excitation force | 260kN / 160kN | Cab dimensions | 1950 × 1500 × 1730 |
| Cab functions | Air conditioning, fan, radio, USB, wiper | ||
| Vibration chamber inside steel wheel | Left and right sides 3L each | ||
| Hydraulic oil capacity | 135L | Fuel capacity | 175L |
| Optional accessories: Reflective safety cone 50cm; Traffic vest and safety helmet (optional) | |||
Competitive Advantage
This is a versatile rubber tire combination roller that combines powerful compaction with excellent maneuverability and traction. Its rubber tire design can roll smoothly on asphalt and soil while reducing surface damage, making it ideal for urban roads and pavement engineering. Consistent performance on medium and large projects is ensured through reliable engine options and durability. It is a solid option for contractors and public works teams looking for efficiency, comfort and long run.
over twenty years of manufacturing expertise, iso certified production, and complete in-house manufacturing to ensure consistent quality. Each engine is rigorously tested for drum balance, vibration strength, and engine performance. Stable engine partnership, fast delivery, OEM/ODM customization, and global after-sales support ensure that the machine is durable, efficient, and ready for professional use.
Choose us because you get quality machines backed by a trustworthy factory - small size, high power and world-class reliability.
RFQ
1. Product information
We invite qualified suppliers, distributors and global distributors to submit quotes for our range of roller products. This query covers various models, including but not limited to:
300kg walking single drum roller
500kg walking rear double roller roller
600kg walking double roller roller
800kg hydraulic walking rear double roller roller
Double drum and single drum models
OEM/ODM roller can be customized according to customer requirements
Key features include:
High compression performance
KAMA/Honda/Changfa/Changchai engine options
Full hydraulic drive (some models)
Miniature design, suitable for a variety of construction sites
Suitable for asphalt, soil, road maintenance and compaction in narrow areas
2. Demand for quotation
Your quotation should include the following details:
2.1 Product Configuration
Model and engine brand
Drum size and vibration frequency
Hydraulic system configuration (if applicable)
Optional accessories (water tank, scraper, LED light, etc.)
Color customization (yes/No)
2.2 Pricing Requirements
Please provide:
Unit price (EXW/FOB/CIF - please specify)
Minimum Order Quantity (MOQ)
Discount on volume
Time of delivery
Warranty terms
Spare parts price (if any)
3. Supplier qualification requirements
The following documents should be provided:
Company Profile
Production capacity description
Related experience in construction machinery products
Dealer network (if applying as a dealer)
4. Delivery and packing
Standard export wooden case/iron frame packing
Ship domicile: Shandong, China
Estimated production time: 15-25 days (depending on model and quantity)
5. Submit method
Please send your offer to:
Whatsapp: +86 18657133927
E-mail :charlie.jinghongruize@gmail.com
Web site :peakforcefive.com
(Quotation can be uploaded through the enquiry form)
Include the following in the subject of your message:
Quote submission - Roller -[Name of your company]
7. Contact information
For technical specifications, drawings or custom inquiries, please contact the sales team
We will reply within 24 hours.
